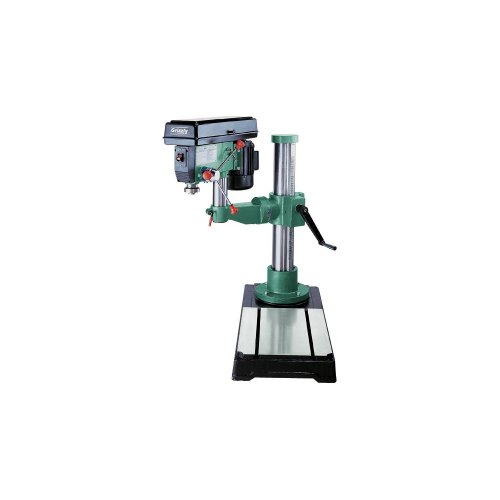

Grizzly G9969 Radial Drill Press




Designed by us, this drill press is very popular with both wood & metalworking shops that have bulky projects.
Head swivels 360° & tilts 45° left & right.
Swing is a huge 45" (you can drill in the middle of a 45" diameter round piece) & spindle can be brought close to the column with the uniquely designed swivel post.
Slots in table allow you to use varieties of clamps.
Specifications:

• Motor size: 1 H.P., Single Phase
• Voltage: 110V/220V
• Switch & wiring: 110V
• Overall height: 51"
• Spindle travel: 3-1/4"
• Number of speeds: 12
• Drill chuck: 5/8"
• Spindle taper: MT #3
• Range of speeds: 200-3000 RPM
• Swing: 45"
• Drilling capacity: 1-1/4"
• Steel ? Head tilts: 45°; R/L
• Head swivels: 360°;
• Main column diameter: 5"
• Max. distance spindle to base: 36"
• Base size: 17-1/2" x 39-1/2"

• Approx. ship. weight: 525 lbs.
